Cost Event Consumer — Status Update

2026-07-07

Martin Povolny

What's New Since Demo 3

Area Status
REQ-13 Custom metric extraction Done — config-driven, zero code changes
Observability P1+P2 Done — Prometheus, probes, logging, shutdown
CI pipeline Done — 6 jobs incl. k3s integration test
OSAC integration test Done — full OSAC + cost stack on k3s in CI
MaaS integration test Done — IPP + AI gateway + echo LLM on k3d
Adversarial review v4 — 72 findings, 46 fixed, 0 critical/high open
Tooling Bruno collection + Grafana dashboard

Score: 13 done / 4 partial / 1 TBD (of 18 requirements)

REQ-13: Custom Metrics

OSAC will emit new CloudEvent types over time:

  • GPU workloads, storage volumes, network traffic, ...
  • Each with different fields to meter

Without REQ-13: every new metric = code change + PR + deploy

With REQ-13: drop a JSON config, restart → rating, reporting, quotas all work automatically

CUSTOM_METRICS_CONFIG=deploy/custom-metrics-example.json

REQ-13: How It Works

CloudEvent in:

{
  "type": "osac.gpu.lifecycle",
  "data": {
    "instance_id": "gpu-i-abc123",
    "tenant_id": "tenant-acme",
    "gpu_model": "A100",
    "gpu_memory_gib_seconds": 245760.0,
    "gpu_compute_seconds": 3600.0,
    "duration_seconds": 3600,
    "state": "RUNNING"
  }
}

Config that extracts meters:

{
  "event_type": "osac.gpu.lifecycle",
  "resource_type": "gpu_instance",
  "resource_id_field": "instance_id",
  "tenant_id_field": "tenant_id",
  "meters": [
    { "meter_name":
        "gpu_memory_gib_seconds",
      "value_field":
        "gpu_memory_gib_seconds",
      "unit": "gib_seconds" },
    { "meter_name":
        "gpu_compute_seconds",
      "value_field":
        "gpu_compute_seconds",
      "unit": "seconds" }
  ]
}

Rating, reporting, quotas — all work automatically. No code changes.

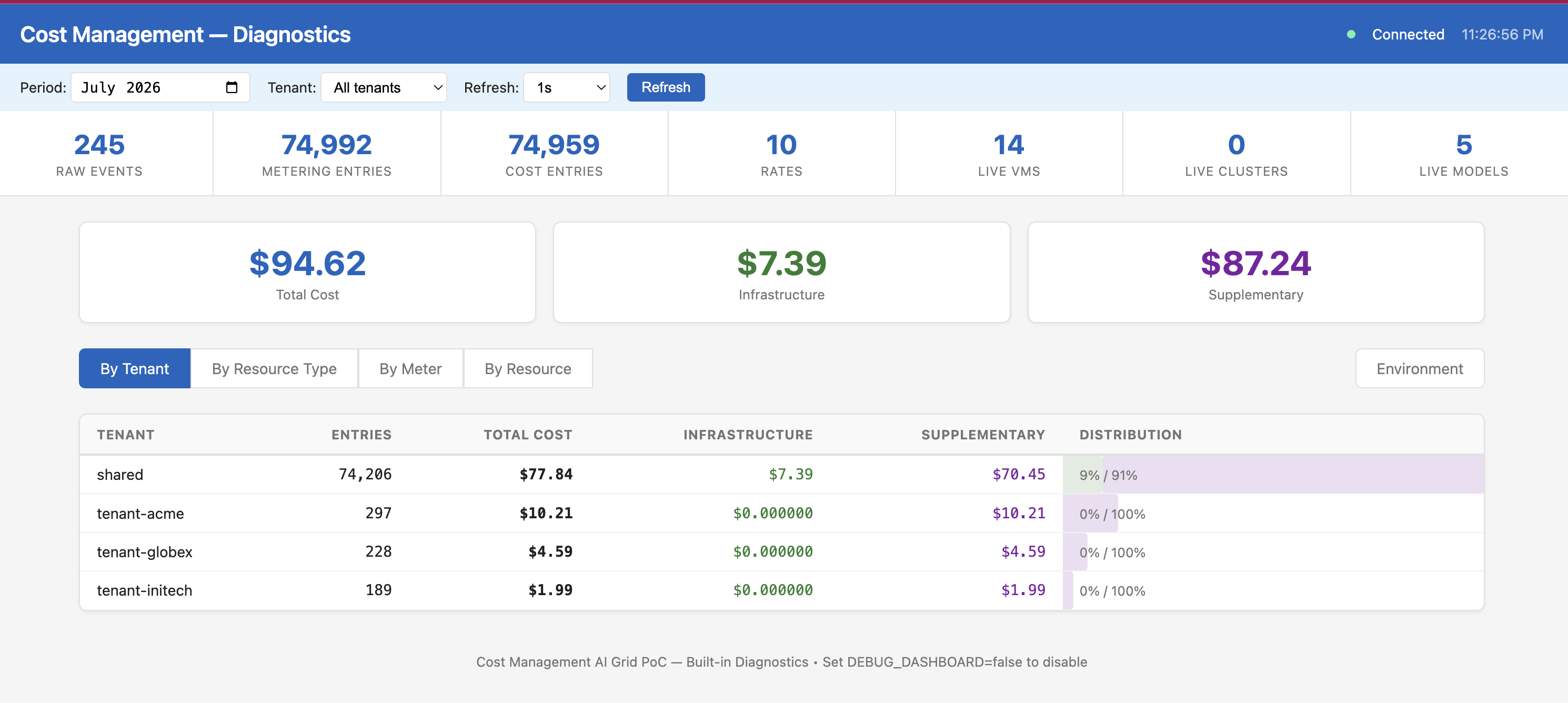

Built-in Debug Dashboard

  • Real-time cost summary
  • $94.62 total across 4 tenants
  • Infrastructure vs Supplementary split
  • Group by tenant, resource type, meter, resource
  • 74,992 metering entries → 74,959 cost entries

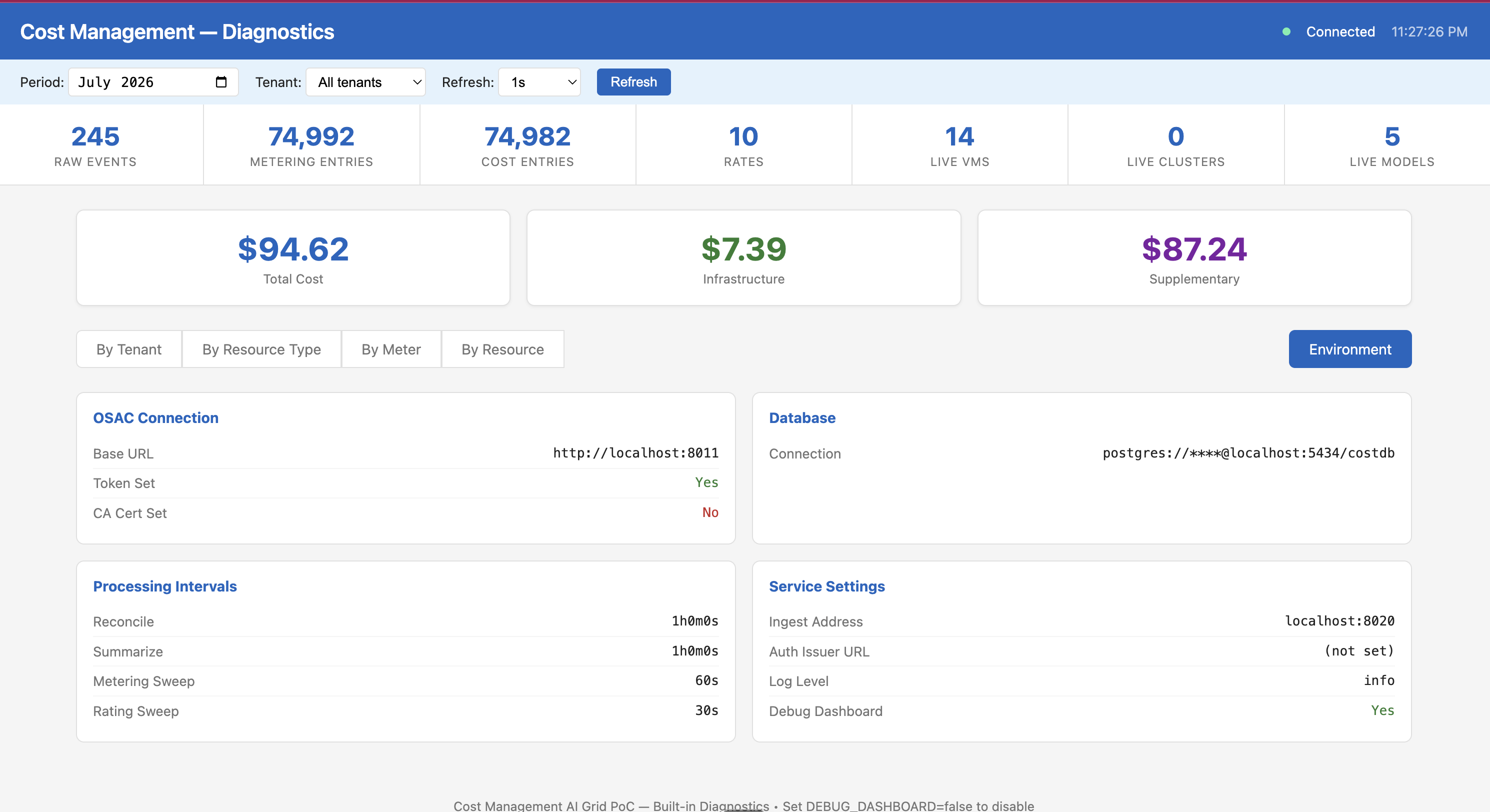

Debug Dashboard: Environment

  • OSAC connection status
  • Database connection (credentials masked)
  • Processing intervals: reconcile 1h, metering 60s, rating 30s
  • Service settings: auth, log level, ports

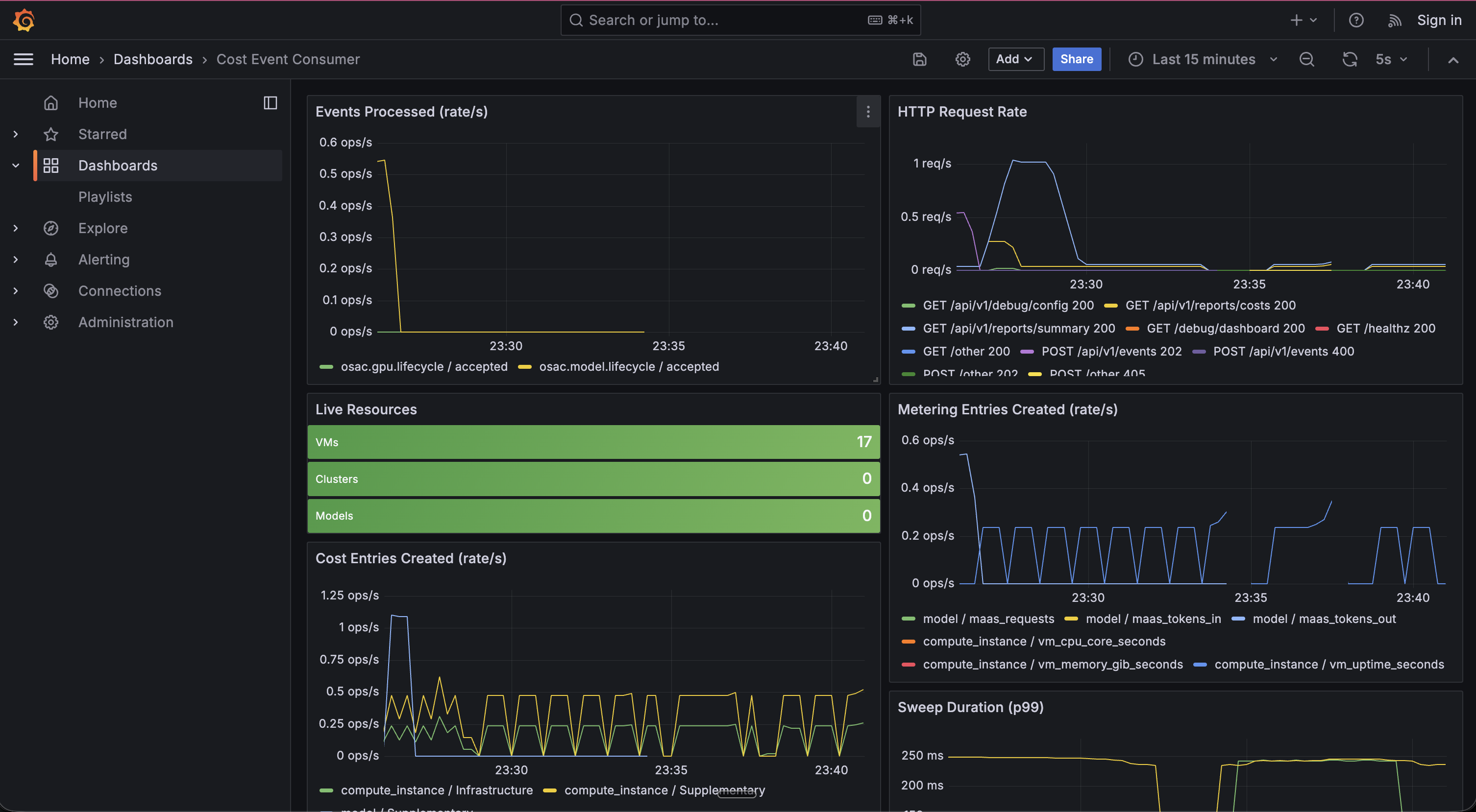

Observability: Grafana Dashboard

docker compose up -d → http://localhost:3000

  • 17 live VMs from OSAC
  • Event throughput + HTTP request rate
  • Metering and cost entry creation rates
  • Sweep duration p99
  • Auto-provisioned, auto-refreshing

Observability: Metrics Detail

Metric Type What
events_processed_total Counter Events by type + status
metering_entries_created_total Counter Meters by resource + name
cost_entries_created_total Counter Costs by type
metering_sweep_duration_seconds Histogram 60s sweep latency
rating_sweep_duration_seconds Histogram 30s sweep latency
live_compute_instances Gauge Active VMs
http_requests_total Counter API traffic

Separate :9000 port (no auth) — RHT pattern from Koku.

Observability: Logging & Probes

Structured JSON logging for OpenShift log aggregation:

{
  "time": "2026-07-06T18:05:33Z",
  "level": "INFO",
  "msg": "http request",
  "method": "POST",
  "path": "/api/v1/events",
  "status": 202,
  "duration_ms": 3,
  "request_id": "a1b2c3d4"
}

Kubernetes probes (auth-exempt):

  • /healthz → liveness (always 200)
  • /readyz → readiness (pings DB, returns 503 if down)

Graceful shutdown with 30s drain + panic recovery on all goroutines.

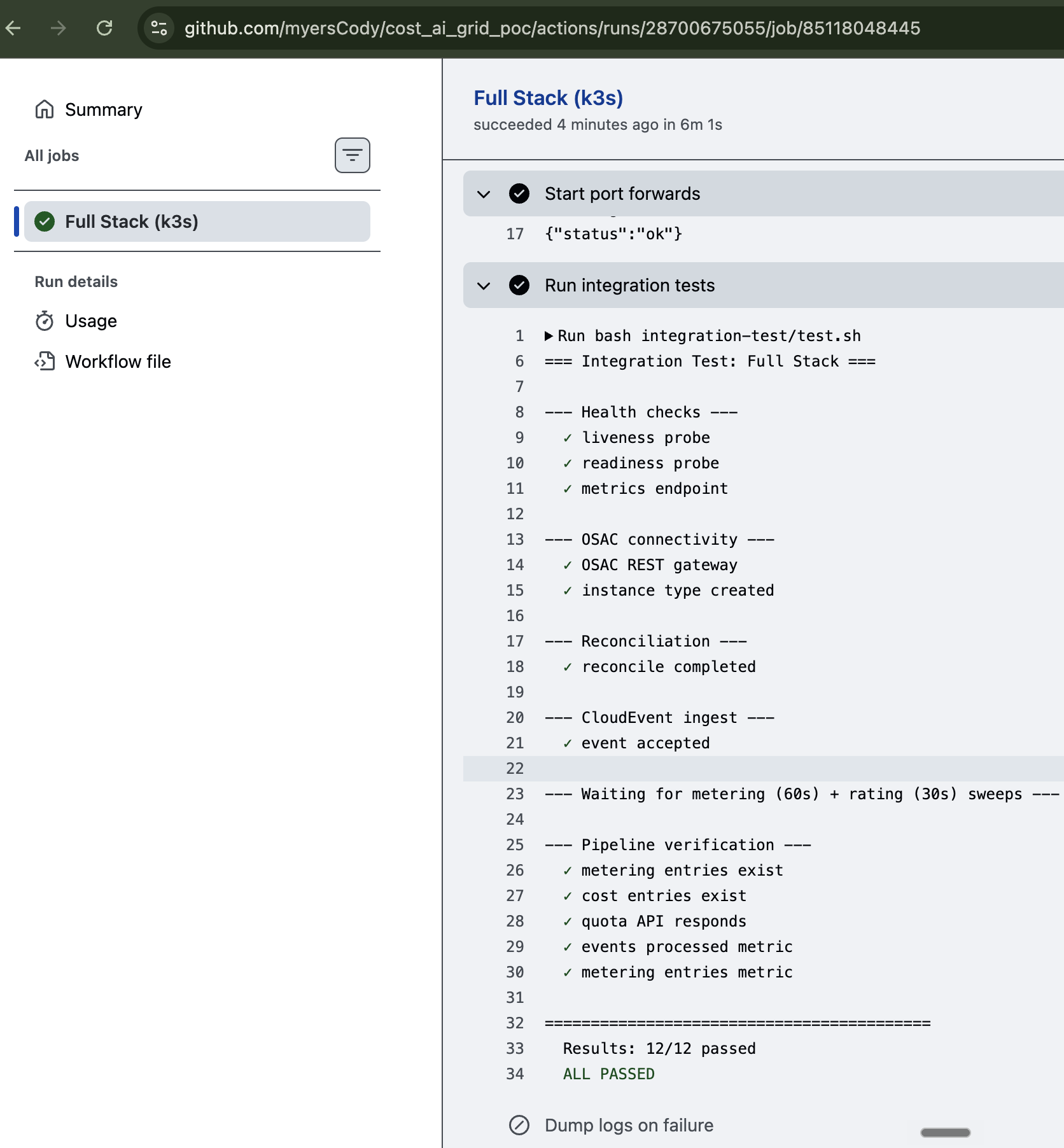

CI Pipeline + Integration Test

CI (every PR): lint, build, test, links, container

Integration test (k3s):

  • Deploys full OSAC + cost stack
  • Creates resources in OSAC
  • Sends CloudEvents
  • Waits for metering + rating sweeps
  • Verifies: probes, metrics, cost entries, quota API

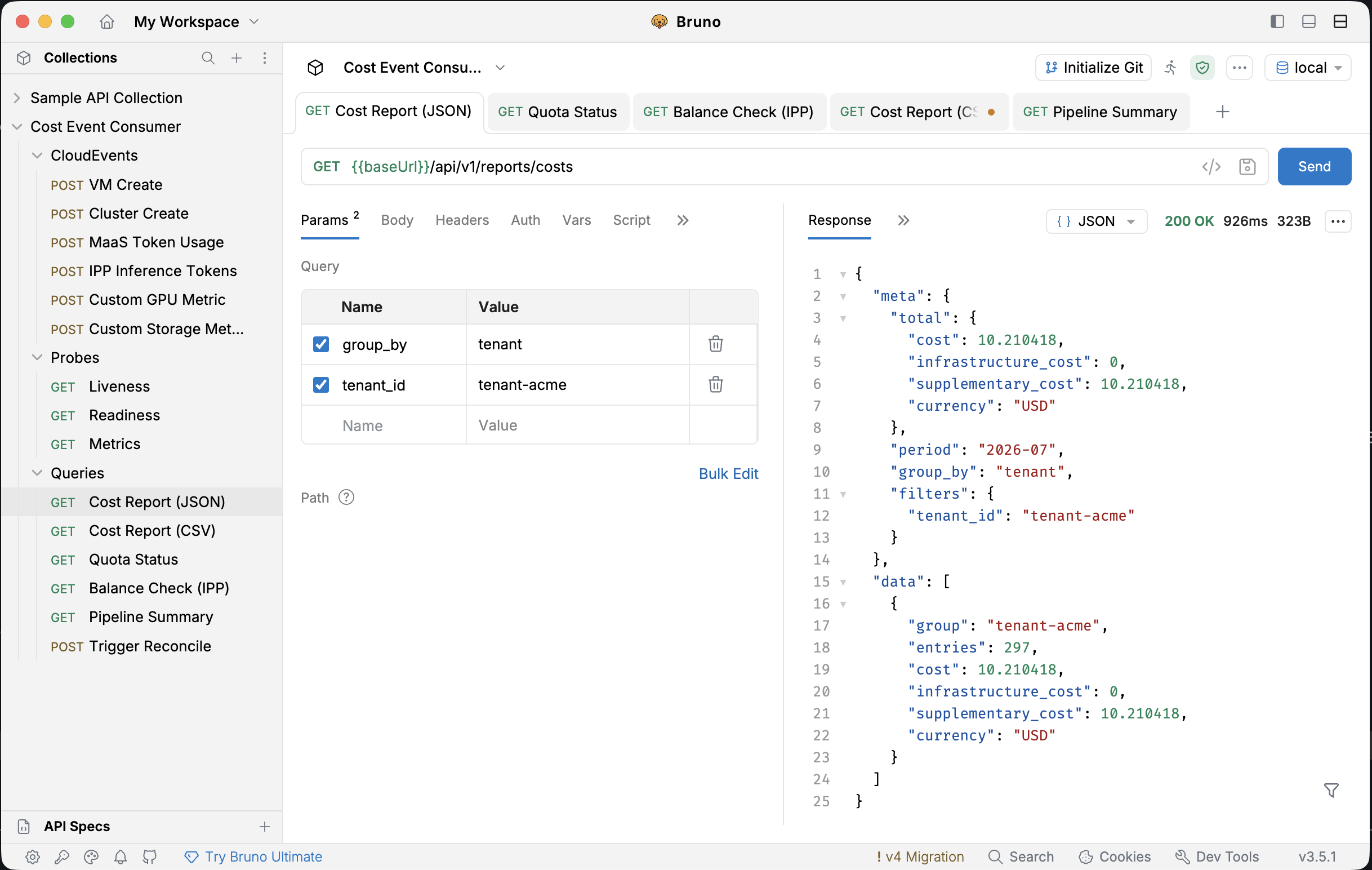

Bruno: Clickable CloudEvent Catalog

Committed to git — no cloud, no accounts.

  • 6 CloudEvent types (VM, Cluster, MaaS, IPP, GPU, Storage)
  • Cost report with editable query params
  • Quota status, balance check, reconcile trigger
  • Docs tab with valid parameter values
  • Response: $10.21 cost for tenant-acme

Adversarial Review Process

Version Scope Total Fixed Accepted
v1 Full codebase 17 9 4
v2 Observability +16 = 33 +10 = 19 +0 = 4
v3 Custom metrics +8 = 41 +3 = 22 +4 = 8
v4 Full re-audit +31 = 72 +24 = 46 +8 = 16

0 critical, 0 high open. 14 remaining (medium/low).
Key v4 fixes: batch project_id, concurrent reconciliation guard,
duration validation, readiness probe, rating N+1, configurable intervals.

MaaS End-to-End: IPP Integration Verified

Full inference metering pipeline on local k3d:

  • Istio 1.29.2 + IPP ext_proc (PR #320) + llm-katan (echo LLM)
  • Balance check on every request → hasAccess: true/false
  • Usage report: CloudEvent → metering → cost
  • Setup guide · IPP overview · MaaS flow

IPP Stress Test: 850 req/s, Zero Errors

Test Concurrency RPS P50 P99
Baseline 10 803 12ms 23ms
High 50 860 55ms 91ms
Sustained 30s 20 848 23ms 43ms

40K+ requests, 100% success. Unique constraint costs 6-11% throughput.
Full report · PR #25

What's Next

Item Status Next step
MaaS tenant attribution Researched Confirm subscription → tenant mapping with OSAC
Project-level quotas Tenant-only done Add project quotas with rollup (Pau, PR #33)
gRPC Watch stream PoC done (PR #32) Clarify public vs private stream with OSAC
Catalog-item pricing Rates done Add SKU-based pricing layer (Pau, PR #33)
Performance 850 req/s baseline In-memory balance cache, report available
REQ-5 Chargeback export API done Scheduled export + FOCUS format

Questions?

Martin Povolny, mpovolny@redhat.com

github.com/myersCody/cost_ai_grid_poc

Narration: Welcome. This is our fourth demo — covering everything we built since the live dashboard demo on July 1. Focus areas: custom metric extraction (REQ-13), observability stack, CI pipeline, integration testing, and tooling.

Narration: Since demo 3 we shipped custom metrics, full observability, a CI pipeline with integration testing, and developer tooling. 13 of 18 requirements are done.

Narration: This is the most important functional feature we added. OSAC is evolving — new resource types, new metrics. Without REQ-13, every new dimension means a code change. With it, an operator drops a JSON config file and the system meters it automatically. No code changes, no recompile, no redeploy.

Narration: Left side is the CloudEvent that arrives. Right side is the config that tells the system which fields to extract as meters. The field names in the config point at the field names in the event data. Rating, reporting, and quotas all work on free-text meter names — so custom metrics flow through the entire pipeline with zero code changes.

Narration: The built-in dashboard shows the pipeline in action. $94.62 in total cost, split across 4 tenants. The "shared" tenant has both infrastructure ($7.39 from VMs) and supplementary ($70.45 from MaaS tokens). Each tenant's cost is isolated.

Narration: The Environment tab shows operational config. OSAC connection URL, database (credentials masked), processing intervals, auth status. This is served from the binary itself — no separate tool needed.

Narration: The Grafana dashboard scrapes our Prometheus metrics on port 9000. You can see 17 live VMs, metering entries being created for both compute instances and MaaS tokens, cost entries flowing from the rating sweep. This starts with docker compose up — dashboard is pre-provisioned.

Narration: All metrics use the cost_consumer_ namespace. Counters for events, metering entries, cost entries. Histograms for sweep duration. Gauges for live resources. Served on a separate port without auth so Prometheus can scrape without a JWT.

Narration: LOG_FORMAT=json for production. Every request gets a request ID. Probe endpoints are exempt from JWT auth so Kubernetes can reach them. Graceful shutdown drains in-flight requests. If a goroutine panics, the error propagates to the errgroup and the pod restarts.

Narration: Every PR runs 6 CI jobs. The integration test deploys the full stack — OSAC gRPC, REST gateway, OIDC mock, two PostgreSQL instances, and our consumer — on k3s in GitHub Actions. Then it runs 12 end-to-end checks. All green.

Narration: Bruno is a local HTTP client like Postman but file-based — the collection is committed to git. Each request has documentation with valid parameter values. Click to fire, see the response. Great for demos and for developers exploring the API.

Narration: Four rounds of adversarial review. 72 total findings, 46 fixed, 16 accepted as known PoC limitations. Zero critical or high severity open. The 14 remaining are medium and low — none blocking.

Narration: We deployed the full OSAC AI gateway stack locally and proved that our cost consumer works as a drop-in replacement for OpenMeter. The IPP plugin calls our checkBalance and reportUsage endpoints — both verified against the upstream source code and OpenAPI spec.

Narration: We hammered the pipeline with 40,000 requests at up to 100 concurrent connections. 850 requests per second sustained, zero failures. Balance check averages 0.36ms, usage report 2.17ms. This is on a local k3d cluster running on ARM Mac via QEMU — production would be faster.

Narration: The main open item is MaaS tenant attribution — we've researched the IPP pipeline and found that TokenMetadata on the MaaSSubscription CRD has the fields we need but they're not wired through to the CloudEvent. Project-level quotas and catalog pricing are new requirements from Pau's review. The gRPC Watch PoC is done and tested — ready to switch if needed.
